Setting up Quassel Core and Client for distributed IRC client

Posted on October 16, 2020 by Cris

Quassel is a modern, cross-platform, distributed IRC client, in that way multiple clients can attach from a central core. IRC is popular among geeks of open source softwrare.

But there is problem, when you logged out from IRC channel, you miss the messages or updates that is currently happening there, but using IRC persistence, installing IRC Core that is a daemon IRC client, part of Quassel, that supports all time connectivity, in that way we can attach several IRC clients to it.

To this we'll need a VPS, you can choose a 5 bucks VPS, from linode, Alibaba, Azure ...

Quassel's packages

  • quassel-monolithic This package is an IRC client for a single computer
  • quassel-core: This package contains the core to attach multiple IRC clients at once
  • quassel-client: This package is a client that can be attached to a core IRC

As we can see, the core is the application that actually communicate with IRC networks, the client just communicate with the core, in that way, you can attach several clients without give any additional information or settings, giving the user the ease of having and IRC instance on multiple devices

On the server

We will need to install the following packages.


#pacman -S quassel-core postgresql

Setting up Core

It will be necesary to generate a certificate, if you are worried about security, we will setting up Client-Core SSL encryption using openssl,and then send it to the directory of quassel.


#openssl req -x509 -nodes -days 365 -newkey rsa:4096 -keyout /var/lib/quassel/quasselCert.pem -out /var/lib/quassel/quasselCert.pem
#chown quassel:quassel /var/lib/quassel/quasselCert.pem

SSL self-signed certificate

This is a self-signed certificate,so you can configure as you wish

  • -x509 Tells req to create a self-signed certificate.
  • -nodes Tells not to encrypt the private key, short for "no Des",that is to say without using a passphrase
  • -days 365 Specifies that the certificate will be valid for 365 days
  • -newkey rsa:4096 Generates a private key using the RSA algorithm with a 4096-bit key length
  • -keyout This gives the filename to write the newly created private key to the path
  • -out This specifies the output filename to write

Creating database

We will need to create a database and user for quassel, if we are using PostgreSQL, so we will to switch to the postgres user


#su - postgres
$psql
[postgres]$ psql -c "CREATE USER quassel WITH PASSWORD 'putSomePasswordHere';"
[postgres]$ psql -c "CREATE DATABASE quassel WITH OWNER quassel ENCODING 'UTF-8';"

Before that,you may need to open the port 4242 in you firewall, then start service

Some VPS providers has security groups it means, are default instances groups that your VPS belongs, and provide security and port access level, is a firewall for IaaSs, that contains ACLs (set of rules that filter traffic coming into and out of the VPS), you may need to configure this before, and change the inbound rules or add exceptions

#systemctl start quassel.service
#systemctl enable quassel.service

We could make additional configuration in the following file, for instance, if you want to change the default port, you can issue the following command


#quasselcore --configdir=/var/lib/quassel --port=4141

On the client

First, we need to install the client


#pacman -S quasselclient

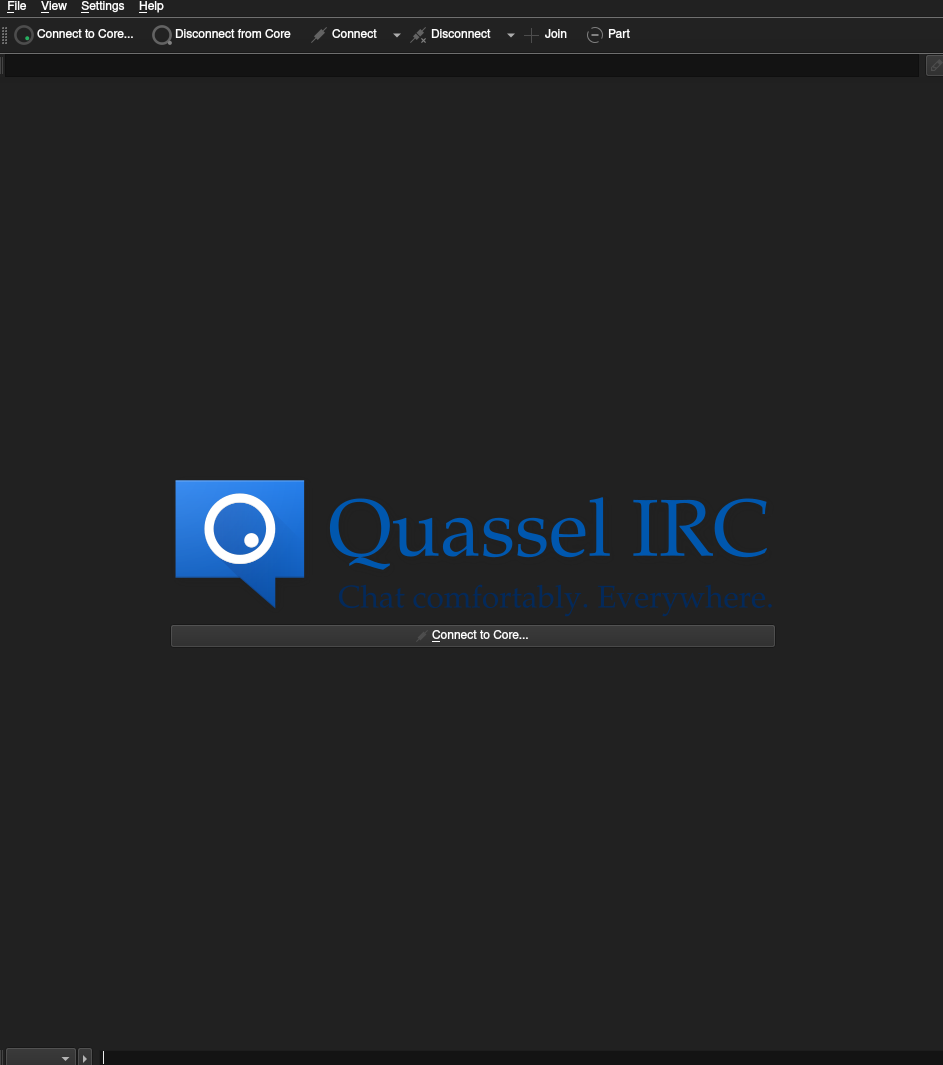

Then we need to connect the core with the client, so we issued the command quasselclient

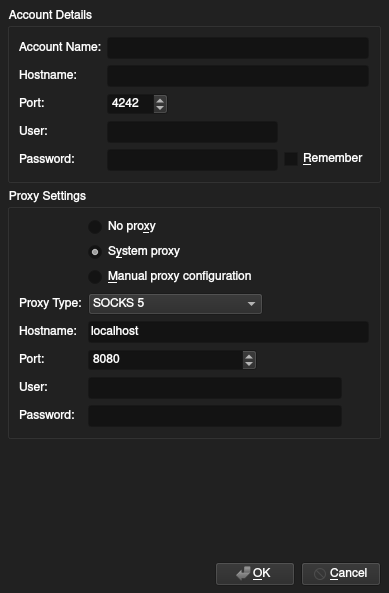

It will show a dialog box, where we'll add an account, and it will open another dialog box,as below

How to fill it?
  • Account Name: Some name to identify the core.
  • Hostname: The IP address of your VPS.
  • Port: The port you configure before, as default is set to 4242, but it can be changed in the core
  • User: The user that you create for your database in the core
  • Password: The password issued for your database

Summary

Also you can configure an android client through an app, currently I'm using QuasselDroid, I'm strongly recommend it, it also has fancy materials(themes), easy to configure and of course open source.
